전실 스파이크 플러그
Created with Pixso. Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines

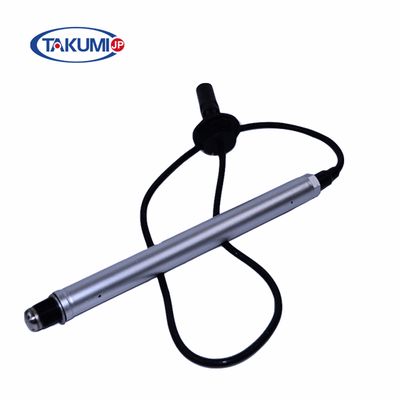

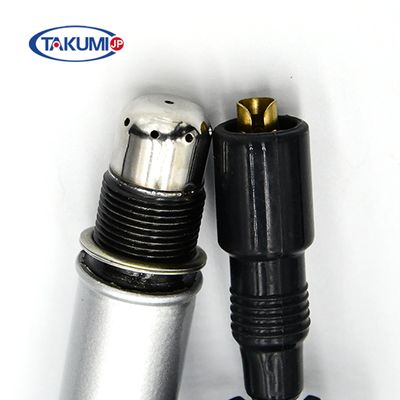

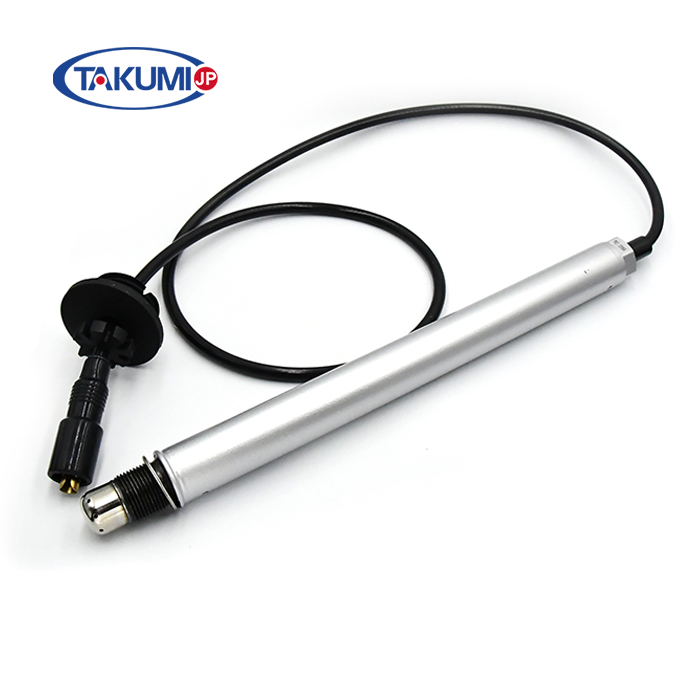

Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines

모델 번호: S-R6A13
MOQ: 1
가격: $199-$250
배달 시간: 35 일
지불 조건: L/C ,, T/T, Western Union, MoneyGram
상세 정보
원래 장소:
중국
유형:
S-R6A13
전극 유형:
프리챔버
저항 또는 그렇지 않음:
저항기
애플리케이션:
MWM : TCG 2020
특징:
비용 효율적입니다
사용:
사용된 천연가스, 바이오가스, 매립지 가스
크기:
표준 크기
지불 조건:
T/T 30% 예금
배달:
기존 설계에 기초한 45일
포장 세부 사항:
플라스틱 박스에서 >One ; 깡통에서 4 ; MWM은 플라스틱 파이프에 설치됩니다.
공급 능력:
한 달에 300pc
제품 설명
Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines
Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 0 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 1 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 2
Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 3Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 4
1. Detail Specification & Application
Part Number

S-R6A13 with Coil

Thread M18*1.5
Reach 26 mm
Hex 22.2 mm
Seat Type Flat
Gap 0.3 mm
Cable Length 540 mm
Shield Length 278 mm
Electrode Type Pre-Chamber
Resistor or Not Resistor
Replacement 1245-2828, 1245-2835, 1245-2074, 1245-2176, 1245-3318, 1245-3572, 1245-3388, 1245-1641, 1245-3556
Application MWM: TCG 2020
2. Our Advantages
  • Superior ignitability, stable idle and long service lifespan
  • Advanced anti-corrosion, anti-fouling properties
  • Quicker starts and acceleration
  • Improved fuel economy
  • Equal life time to the original.
  • Competitive price than the original.

The high quality of our products is the same as famous brands all over the world, while our price is more competitive.

3. Packing Information
  • One in plastic box; 4 in cans; MWM is installed in plastic pipe.
  • Customized.
  • Express, by air, by sea or according customers' request.
4. Related Products
Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 5 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 6 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 7 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 8
Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 9 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 10 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 11 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 12
Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 13 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 14 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 15 Pre-Chamber Spark Plug Coil S-R6A13 Applicable for TGC 2020 Series Engines 16
5. Q&A

Q: Can you produce according to the samples?

A: Yes,we can produce by your samples or technical drawings.We can build the molds and fixtures.

Q: Do you test all your goods before delivery?

A: Yes, all goods will be 100% test before delivery

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% balance before delivery.

Q: What is your terms of delivery?

A: By sea ,by air , by express ,such as :EXW, FOB, CFR, CIF, DDU.

Q: What is your sample policy?

A: We can supply the sample if we have ready parts in stock,but thecustomers have to pay the sample cost and the courier cost.

Q: How do you make our business long-term and good relationship?

A: We keep good quality and competitive price to ensure our customers benefit.

Q: How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment.

Q: What is your terms of packing?

A: We provide OEM&ODM service ,can provide special design for customer company logo .

We are here for you!

Contact Information

Sales Man: Jessica Wang

T:+86-15581011202

WhatsApp: +86-18784167023

E:jessica@takumijap.com
